Enclosed Type PSU Hall



The enclosed type power supply(PSU) is featured with a metal enclosure and the terminal block design, allowing the installer easily to lock it. After years of R&D and manufacturing, the portfolio of the enclosed type PSU cover low to high power from 15W to 10000W. The complete product line includes economical, conduction-cooled, special for harsh environments, wide-range voltage output, and parallel connection models. In line with the vast needs of the market and compliance with worldwide certifications. The products have been widely used in various fields such as automation control, data center, surveillance security, high-precision industry, and medical treatment.

Product Introduction
New Products
Media Center
Solutions

Product Introduction

Complete Product Line Introduction

MEAN WELL enclosed-type power supplies have a wide power range of 15W~10000W to meet the needs of various industrial equipment, and have a variety of features including built-in PFC, programmable output voltage and current wide-range regulation, remote control, parallel expansion of wattage to fulfill customer application requirements. All standard products have sufficient inventory. All products comply with global safety standards and EMC/EMI certifications, shortening the launch schedule of end systems and enhancing the market competency.

Product Line Introduction(PDF)
Product Road Map (PDF)

New Products

RST-7K5/15K Series

7.5KW / 15KW 3 Phase 4 Wire High Voltage DC Output Power Supply

MEAN WELL RST-7K5/15K series, 7.5KW / 15KW 3 Phase 4 Wire High Voltage DC Output Power Supply

MEAN WELL has launched its latest three-phase four-wire AC input RST-7K5(7,500W) and RST-15K(15,000W) power supply with 95% high efficiency design, and the maximum parallel output power up to 30kW. Three different DC output models are provided, including 115V, 230V and 380V, which serve various industries, such as automatic industrial equipment, charging energy storage systems, centralized bus power, and many other applications...


More Information



LAD-120/240/360/600

120W~600W Enclosed Type Economical Security & Fire Alarm Power Supply

MEAN WELL LAD-120/240/360/480 series, 120W~600W Enclosed Type Economical Security & Fire Alarm Power Supply

In recent years, due to the needs created by rapid urban development, the demand for safe, reliable, certified and smart security/ fire alarm power supplies has been increasing. Accordingly, MEAN WELL is announcing its new Enclosed Type Economical Security/ Fire Alarm Power Supply LAD-120/ 240/ 360/ 600 series. The LAD series is designed with 1U thin enclosed design, and is separated into the basic model ....


More Information



SHP-10K Series

10kW 3 Phase 3 Wire High Efficiency & Digitalized Switching Power Supply

MEAN WELL SHP-10K series, 10kW 3 Phase 3 Wire High Efficiency & Digitalized Power Supply

Four DC output models are provided, including 55V, 115V, 230V and 380V, which serve various industries, such as automatic industrial equipment, charging energy storage systems, 5G communication equipment, centralized bus power, and many other applications. In addition, thanks to the fully digital design, the output voltage and current are programmable with CANBus, and optionally PMBus or MODBus......


More Information





Media Center

SHP-10K Series —
2300W harsh environment and 5G telecom power supply

SHP-10K is a 3ψ3W high output DC voltage switching power supply. According to the cooling method of power supply, it can be categorized into two types. Forced air cooling and water cooling. Each model suits in different applications, such as telecom, industrial automation, EV charging,and other related industrial cases.



More Information



HEP-2300 Series —
2300W harsh environment and 5G telecom power supply

The newly launched HEP-2300 series also provides high voltage output models, including 115V/230V and 380V, which can be operated for new applications, such as charging equipment, electrolysis equipment, laser cutting and UV curing equipment. It is also suitable for high dust environments or indoor and outdoor equipment.



More Information

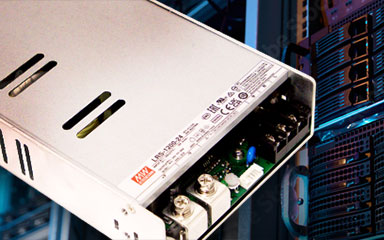

LRS Series Introduction

LRS series includes 5V, 12V, 15V, 24V, 36V and 48V output models. In addition to being 90% efficient, the metal case design enhances heat dissipation, and allowing normal operation in the temperature range of -25°C to +70°C. It has perfect protection function and anti-5G vibration capability; it complies with UL62368-1 international safety regulations, providing cost-effective solutions for various industrial applications.



More Information

Solutions

MEAN WELL has launched its latest three-phase four-wire AC input RST-7K5(7,500W) and RST-15K(15,000W) power supply with 95% high efficiency design, and the maximum parallel output power up to 30kW.Three different DC output models are provided, including 115V, 230V and 380V, which serve various industries, such as automatic industrial equipment, charging energy storage systems, centralized bus power, and many other applications.

In recent years, due to the needs created by rapid urban development, the demand for safe, reliable, certified and smart security/ fire alarm power supplies has been increasing. Accordingly, MEAN WELL is announcing its new Enclosed Type Economical Security/ Fire Alarm Power Supply LAD-120/ 240/ 360/ 600 series.

In order to meet the needs of the latest high-power industrial applications, such as high-voltage charging systems, centralized bus power and other new applications, MEAN WELL has launched its latest newly designed fully digital three-phase three-wire AC input SHP-10K power supply with 97% high efficiency, and maximum parallel output power up to 40kW.

RSP-1500, RSP-1600, RSP-3000 and DPU-3200 series have been launched into the market for few years. However, the world is facing the impact from pandemic as well as the intense material supply chain, effecting the lead-time of some high-power products this year. Therefore, MEAN WELL specially plan the development of NSP-1600 and NSP-3200 series for better cost performance and LT. NSP series will also implement smart FAN speed control and wider the DC operating range up to 400Vdc in near future. Leading these series are extremely suitable for semiconductor equipment, heavy industrial machine applications, automation related applications, 5G telecom station applications and data center applications.

MEAN WELL's HEP-2300 series includes four different output voltages, 55V/115V/230V and 380V. It is suitable for high dust environment or indoor and outdoor equipment. The output voltage can be adjusted in three ways, including a built-in variable resistor, through the programmable (PV/PC) function, and can also be adjusted through digital communication such as CANBus/PMBus/MODbus, which is convenient for system integration and control through human-machine interface. Aside from offering different output voltages, the HEP-2300 series also provides three wiring methods, including traditional terminal block, waterproof wiring cable and waterproof connector. In particular, the waterproof connector can be used for 4G telecommunication radio equipment RRU (Remote Radio Unit) and 5G active antenna AAU (Active Antenna Unit) which can be used in outdoor base stations. It also provides different mounting solutions such as mounting plate type, rear mount or side mount types. If needed with different cables, MEAN WELL can also provide complete cable modification services. Please contact MEAN WELL sales representatives for details.

The LRS-450 and 600 series adopt outward FAN cooling dissipation design. This design greatly improves the stability of the product. MEAN WELL has applied for a patent for the circuitry layout and appearance, and the product complies complete international safety regulations such as TUV/UL/CE/BIS and others. MEAN WELL persists in maintaining both quality and branding. In order to facilitate new design requirements of original customers, the LRS-450 and 600 series adopts the same size and pitch design as the SE-450 series and LRS-350 series, and high efficiency up to Max. 92%. In addition, the LRS-450/600 implement 3 seconds constant current limit for overload protection, and enhance greater flexibility when dealing with inductance and capacitance loads. For the detailed specifications of LRS-450 and LRS-600, please refer to the link below. If you have any questions, please contact MEAN WELL’s salespersons.

MEAN WELL UHP-1500-HV Series High Voltage Output Power Supply, fanless design combined with conduction heat dissipation, suitable for high dust or any indoor or outdoor equipment, built-in variable resistors, programmable (PV/PC) functions, CANBus, PMBus, combined with the human-machine interface as a system integration and control feature, complies with EN/UL62368-1 regulations, OVC III design, and can be used directly in distribution boxes or stationary equipment, High voltage output with 115/ 230/ 380V DC

MEAN WELL HRP-N3 series, 350% high peak power design, 1U low profile design, an average ±15% ultra-wide range output voltage adjustment capability, 5G vibration proof to withstand harsh environments, -40℃~70℃ ultra-wide operating temperature range makes HRP-N3 suitable for all kinds of environments

MEAN WELL Enclosed Type Power Supply, HEP Series and UHP series, Suitable for base station system, Fanless and fully-potted design for harsh environment, Withstand 10G vibration test, Built-in 2/3 stage charging curves and programmable curve, Output voltage and constant current level programmable, Built-in PMbus and CANBus protocal (optional), Built-in DC OK active signal and 12V auxiliary power output, Fanless design,convectin cooling, Slim and low profile design

MEAN WELL 3000W High Output Voltage PSU, CSP-3000 series, Suitable for UV curving device, High efficiency up to 93%, Forced air cooling by built-in DC fans, Built-in remote ON-OFF control / auxiliary power / power OK signal, Conformal coating

MEAN WELL Enclosed Type Power Supply, HEP Series and UHP series, Suitable for Indoor and outdoor signage display, Fanless and fully-potted design for harsh environment, Withstand 10G vibration test, Built-in 2/3 stage charging curves and programmable curve, Output voltage and constant current level programmable, Built-in PMbus and CANBus protocal (optional), Built-in DC OK active signal and 12V auxiliary power output, Fanless design,convectin cooling, Slim and low profile design
